Dimensions
Choose the width and length to suit the available space and desired covered area.
Widths
3 m3,5 m4 m
Lengths
3–8 m0.5 m increments
Made to measure is available to order.

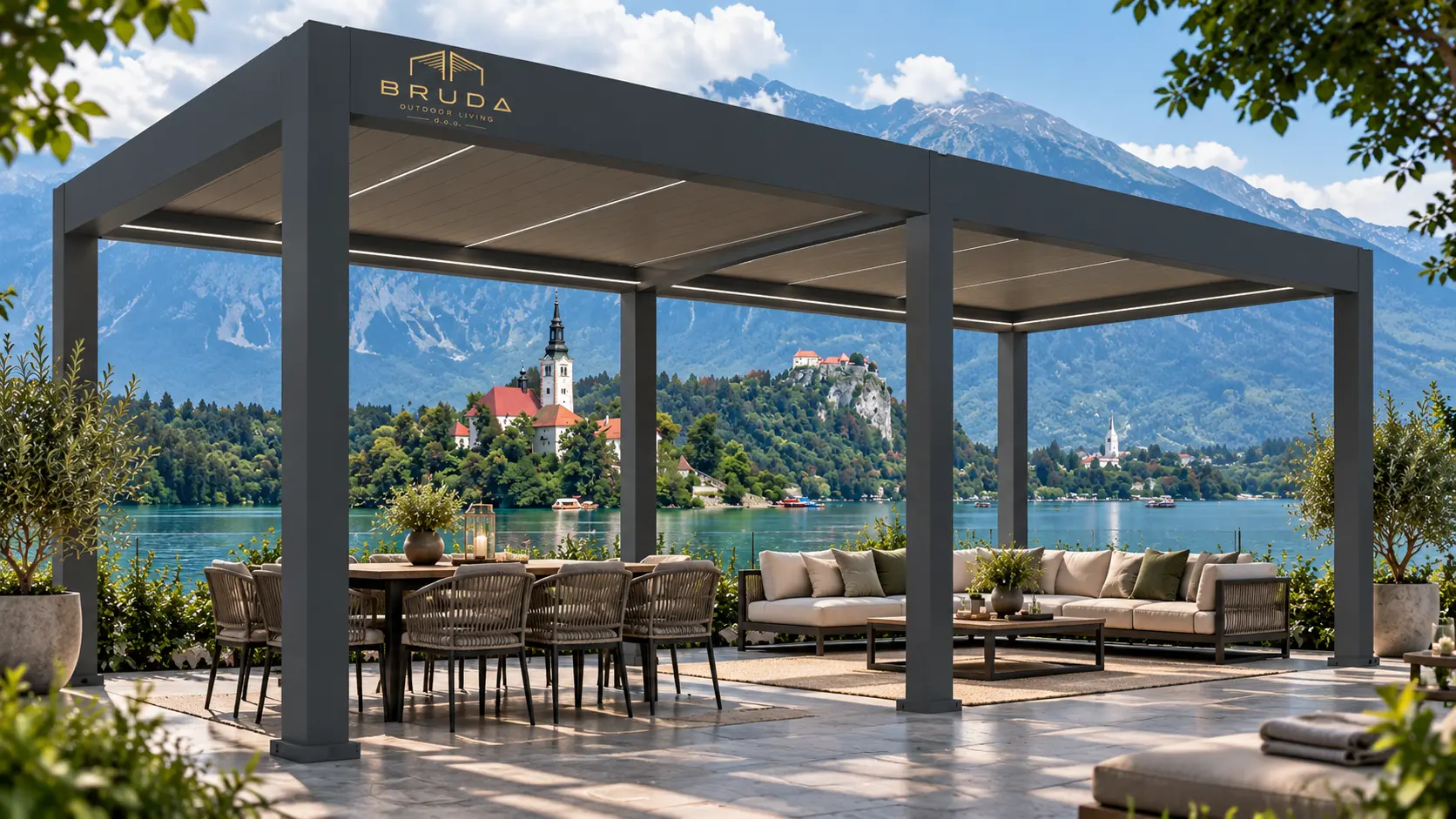

Premium motorised bioclimatic pergola
BRUDA B10
Large format. Calm architecture. Complete control.
BRUDA B10 is the most capable bioclimatic pergola in the BRUDA range. Its robust aluminium structure, motorised louvres, integrated LED lighting and smart control create a comfortable outdoor space that adapts to light, airflow and changing weather conditions.
Wind resistance223 km/hStatically calculated value*
Snow load≈ 261 kg/m²Statically calculated value*
Rainwater drainage280 mm/hDrainage capacity**
Multi-chamber posts150 × 150 mmReinforced structural base
Rotating louvres110°Precise angle adjustment
Standard range33Standard sizes
Choose your configuration
33 standard sizes.
BRUDA B10 is available in three standard widths and lengths from 3 to 8 m. Custom manufacturing is also available for architecturally coordinated projects.
Structure colours
Three standard colours are available at no extra cost. Other RAL colours are made to order.
RAL 7016Matt Grey
RAL 9016Matt White
RAL 9005Matt Black
Other RAL coloursMade to order
Aluminium structure
Reinforced for large spans.
The BRUDA B10 structure is made from 6063‑T6 aluminium. Multi-chamber profiles, an integrated support profile with gutter and local reinforcement form a stable system for demanding installations.
6063‑T6
Aluminium alloy for a durable, precisely manufactured structure.
150 × 150 mm
Substantial multi-chamber posts for a reinforced structural design.
220 × 123 mm
Integrated support profile and gutter for structural performance and water drainage.
193 × 40 mm
Large-format aluminium louvres with motorised operation.
Up to 4.5 mm
Local profile thicknesses at the most highly loaded structural points.
Technical overview
Structural system profiles
View the technical profile drawings, fixing plate and original CAD drawing of the freestanding BRUDA B10 4 × 8 m configuration.
Calculated resistance
Ready for demanding conditions.
Structural calculations define resistance to wind and snow loads, while the integrated drainage system quickly carries rainwater away.
The reinforced aluminium structure is designed for demanding loads and larger outdoor areas.
Support profiles and multi-chamber posts create a stable structural base for winter loads.
Rainwater is collected in integrated gutters and discharged through the interior of the posts in a controlled manner.
* Values are based on structural calculations and depend on dimensions, configuration, anchoring method and local conditions. ** Figure for the freestanding 4 × 6 m configuration.
Integrated drainage
Water follows a concealed path through the structure.
When the louvres are closed, their overlapping surfaces direct rainwater towards the perimeter gutters. From there, water travels to drainage channels in the posts and exits at the base of the pergola, away from the covered area.
Collection between the louvres
Closed louvres guide rainwater towards the integrated perimeter gutter.
Flow through the gutter
The support profile with gutter collects water and directs it towards the drainage points.
Drainage through the posts
Concealed channels in the posts discharge water at the base of the structure in a controlled manner.
Roof and operation
110° of control over light and airflow.
The motorised aluminium louvres open up to 110°. Use the remote control or Tuya app to precisely adjust sunlight, shade and natural ventilation.
- Rotating aluminium louvres up to 110°
- Motorised opening and closing
- Remote control
- Control via the Tuya app
- Solar rain sensor
- Integrated water drainage
Standard equipment
Included with BRUDA B10.
The motor drive, remote control, solar rain sensor and dual-colour LED lighting in the louvres are included as standard.
Included

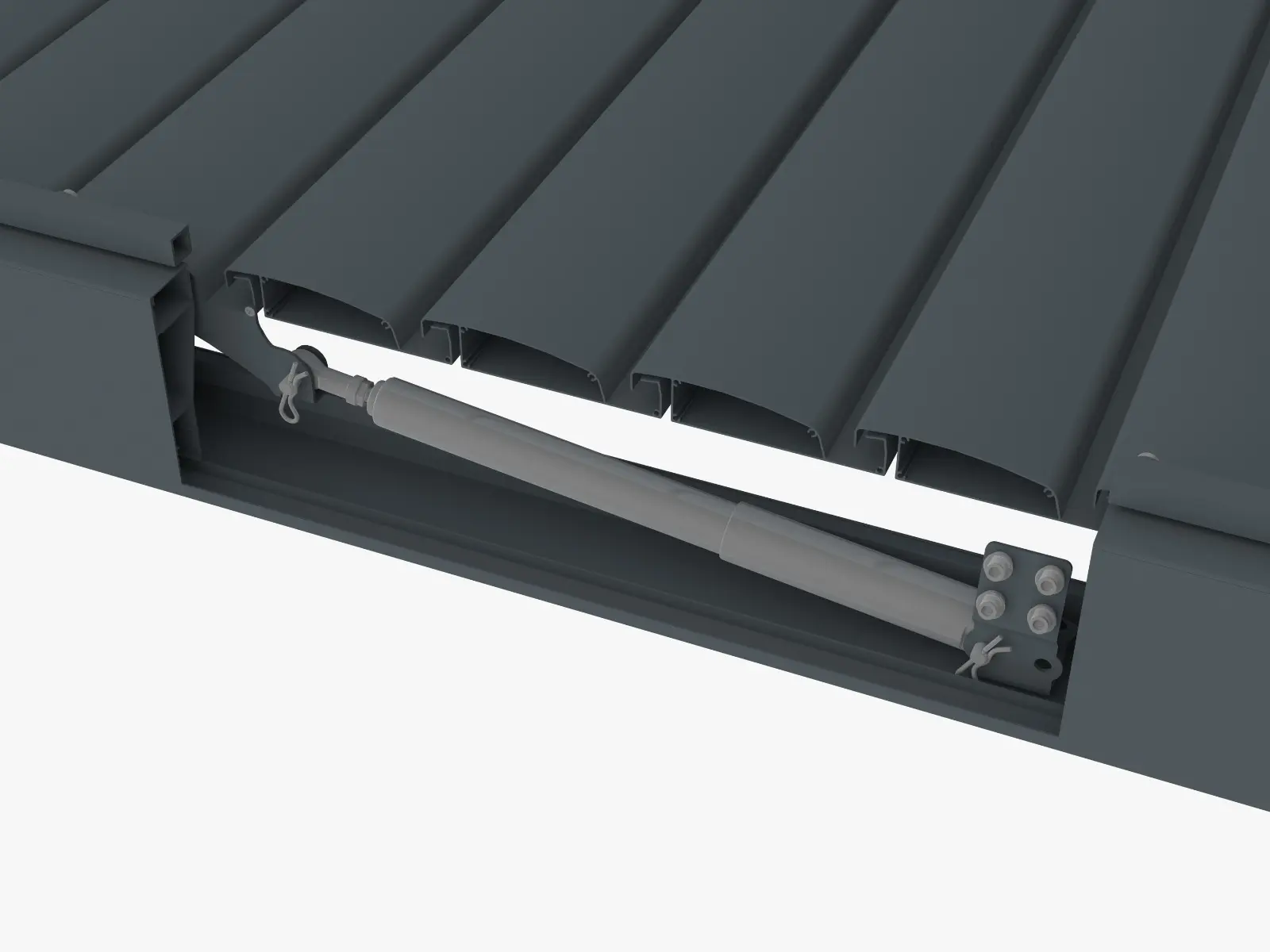

Motor drive
The integrated drive provides coordinated and smooth movement of the roof louvres.
Included

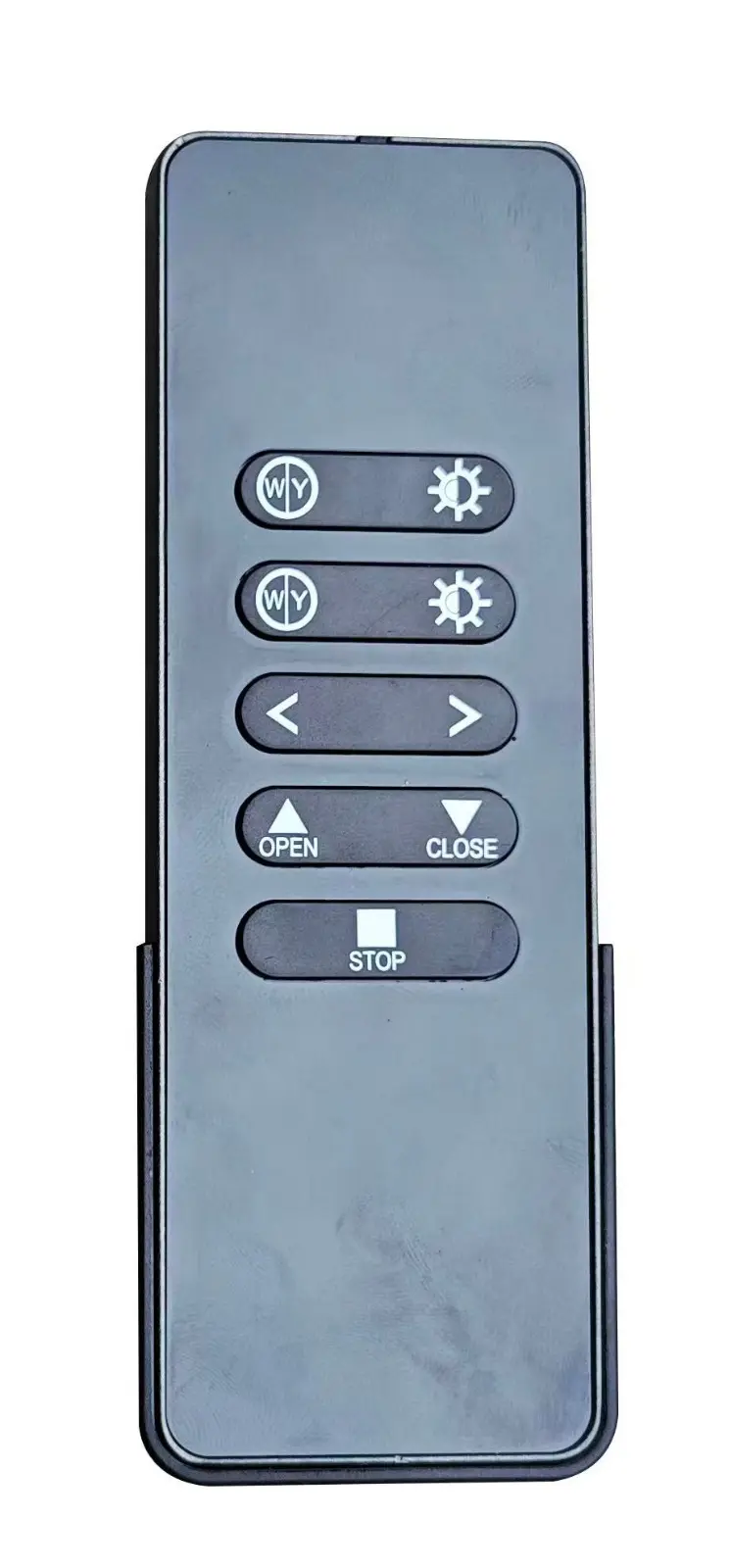

Remote control
Dedicated buttons open, stop and close the roof louvres.
Included

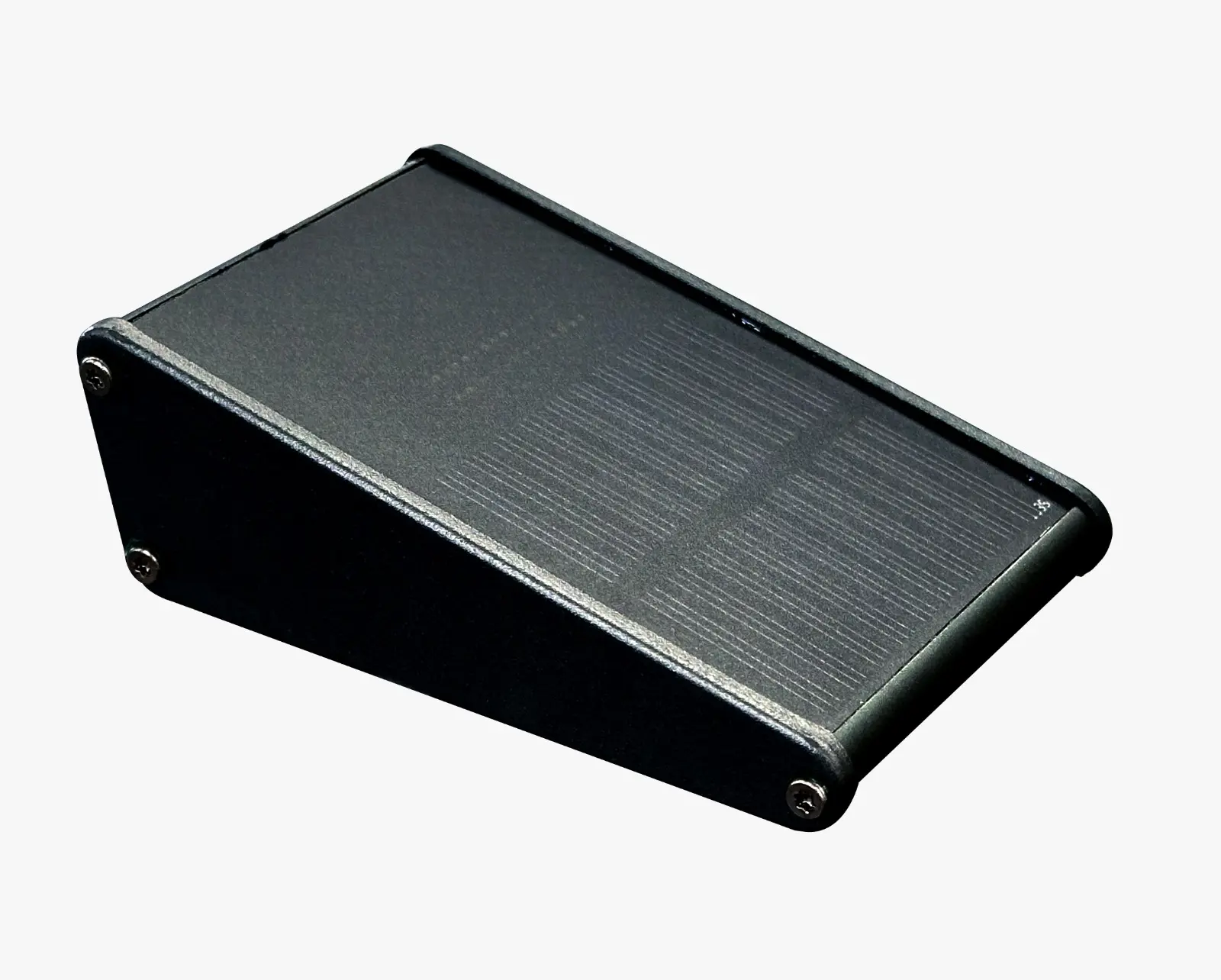

Solar rain sensor
Detects rainfall and enables an automatic roof response without an additional power cable.
LED lighting in the louvres
3000 K Warm White + 6000 K Cold White
Gutter LED lighting
3000 K + 6000 K or RGB
Additional solutions
Adapt the pergola to your way of living.
Complete BRUDA B10 with screens, aluminium walls or sliding glass doors for more shade, privacy and shelter.
Sun and wind protection
BRUDA ZIP Screen
A made-to-measure vertical screen with manual or motorised operation.
Explore the product →
Sliding glass doors
BRUDA Tara Glass Doors
Open views, abundant light and elegant shelter from the wind.
Explore the product →
Aluminium walls and sliding doors
BRUDA Stella
Louvred solutions for added privacy, protection and architectural character.
Explore the product →Is BRUDA B10 right for your space?
Send us your dimensions and requirements, and we will prepare a quotation.
Send an enquiry
