Motorised bioclimatic pergola

BRUDA B4

Shade, light and fresh air — at the touch of a button.

BRUDA B4 is designed for terraces where comfort follows the rhythm of the day. Motorised aluminium louvres, controlled by remote or mobile app, instantly set the desired balance of sun, shade and ventilation. A rain sensor enables an automatic response to rainfall, while the robust aluminium structure gives the space a calm, timeless character.

OperationMotorisedRemote control and mobile app

Rotating louvres100°Precise angle adjustment

Wind test≈ 143 km/h39.8 m/s · all test stages PASS

Snow load107 kg/m²Safety test up to 160 kg/m²

Choose your configuration

Dimensions and colours.

Choose from five standard sizes and three standard structure colours. Custom RAL colours are also available for architecturally coordinated projects.

Standard dimensions

Five proven formats for different terraces and outdoor living spaces.

3 × 3 m3 × 4 m3 × 6 m4 × 4 m4 × 6 m

Dimensioned example of the BRUDA B4 4 × 4 m pergola with a height of 2.51 m — Dimensioned example · BRUDA B4 4 × 4 mEnlarge view ↗

Structure colours

Standard choices with optional custom RAL shades.

RAL 7016Anthracite grey

RAL 9016White

RAL 9005Black

Custom RAL coloursMade to order

Aluminium structure

A substantial design with multi-chamber profiles.

The structural system uses 120 × 120 mm posts, multi-chamber profiles and local reinforcement at the most highly loaded points.

01 / Posts

120 × 120 mm

The substantial multi-chamber posts are made from durable 6063-T6 aluminium alloy.

02 / Profiles

Multi-chamber design

Thoughtful internal profile geometry creates a stable and rigid structural base.

03 / Thickness

1,6 / 1,8 mm

Actual post aluminium thickness, with local structural reinforcement up to 3.0 mm.

04 / Protection

Additional surface protection

An additional protective coating after processing ensures a high-quality, durable finish.

Technical overview

Structural system profiles

View the original profile sections, dimensions, fixing plate and a CAD example of the freestanding BRUDA B4 4 × 4 m configuration.

Open profiles and CAD drawing

Tested resistance

Performance figures that matter.

Structural system tests confirm resistance to wind and snow loads, while integrated gutters provide efficient water drainage.

Wind resistance39,8 m/sapproximately 143 km/h

The one-hour test was performed in several positions and at an angle. After testing, there was no component breakage, loosening of joints or permanent functional failure; every test stage was rated PASS.

Snow load107 kg/m²rated load · 160 kg/m² safety test

At the rated load, the pergola operated normally after testing. At the safety load, the test sample did not break or leave its guides.

Heavy rain resistance200 mm/h

Water is collected in the integrated gutter system and channelled through the structure in a controlled manner.

Integrated drainage

Rainwater travels through the structure.

When the louvres are closed, rainwater is directed into concealed gutters and then through the interior of the posts. Instead of flowing over the roof edge, it is discharged in a controlled way at the base of the pergola.

Roof collection

Closed louvres direct rainwater towards the integrated perimeter gutters.

Concealed flow

The gutters carry water to drainage channels inside the structure.

Controlled discharge

Water exits the structure at the base of the posts, away from the space beneath the pergola.

Diagram of rainwater flowing over the roof louvres into integrated gutters and through the BRUDA B4 posts — Diagram of the rainwater path through the BRUDA B4 structure · click to enlarge.

Roof and operation

Light and shade at the touch of a button.

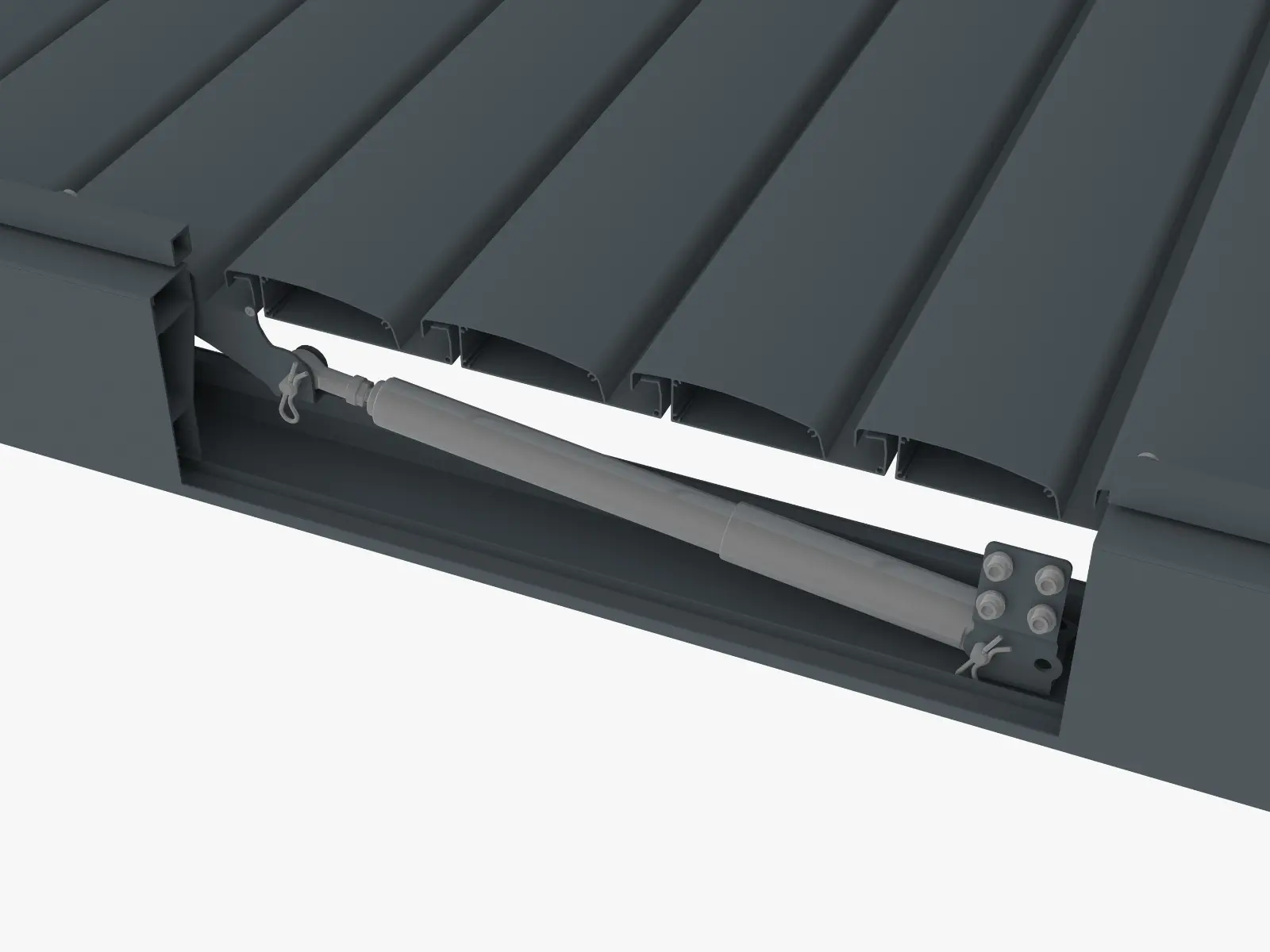

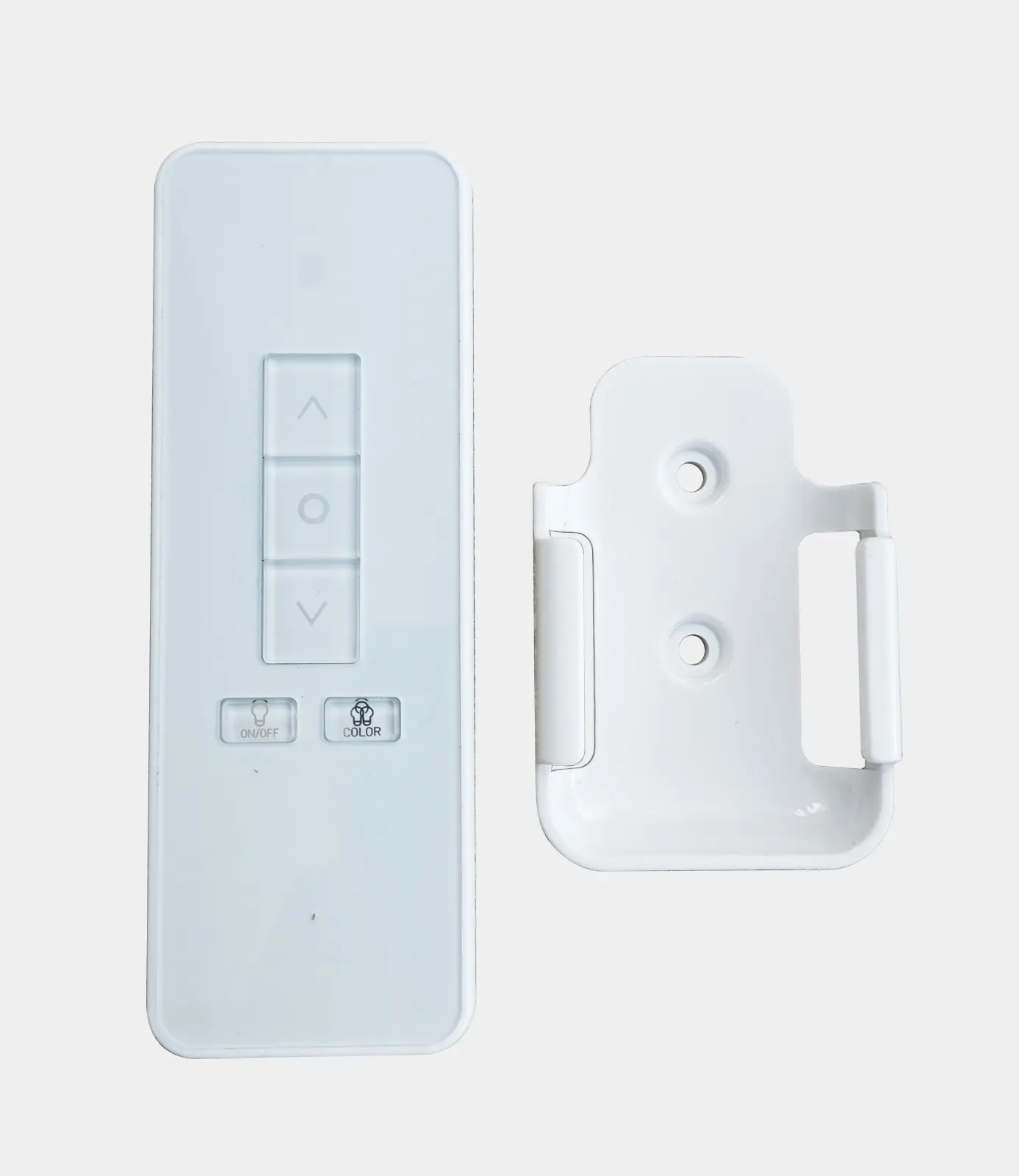

The motor precisely adjusts the aluminium louvres up to 100°. Open, stop or close the roof by remote control or mobile app to create the desired balance of sun, shade and ventilation.
